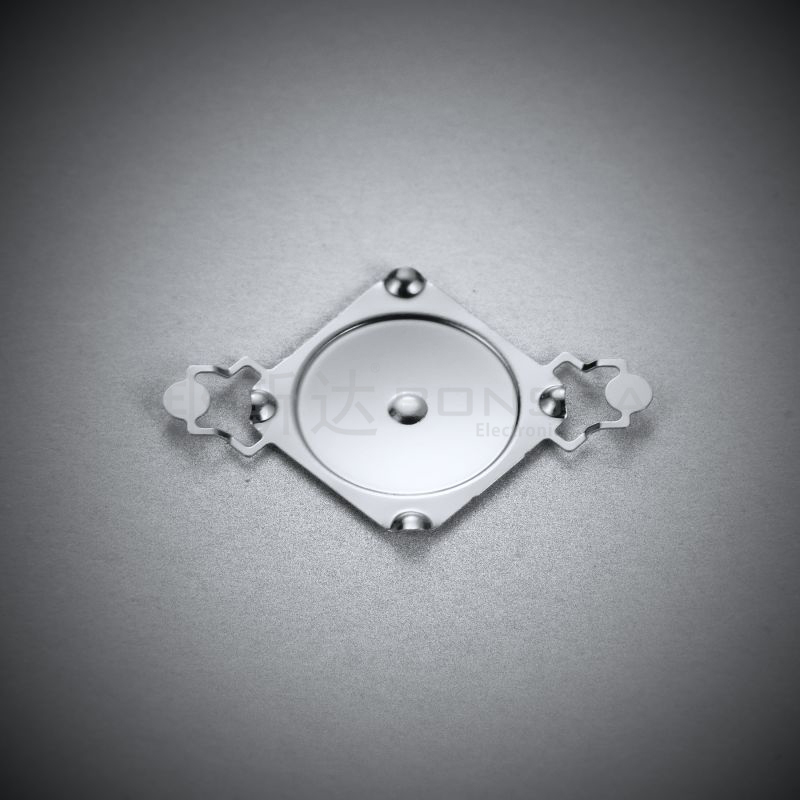

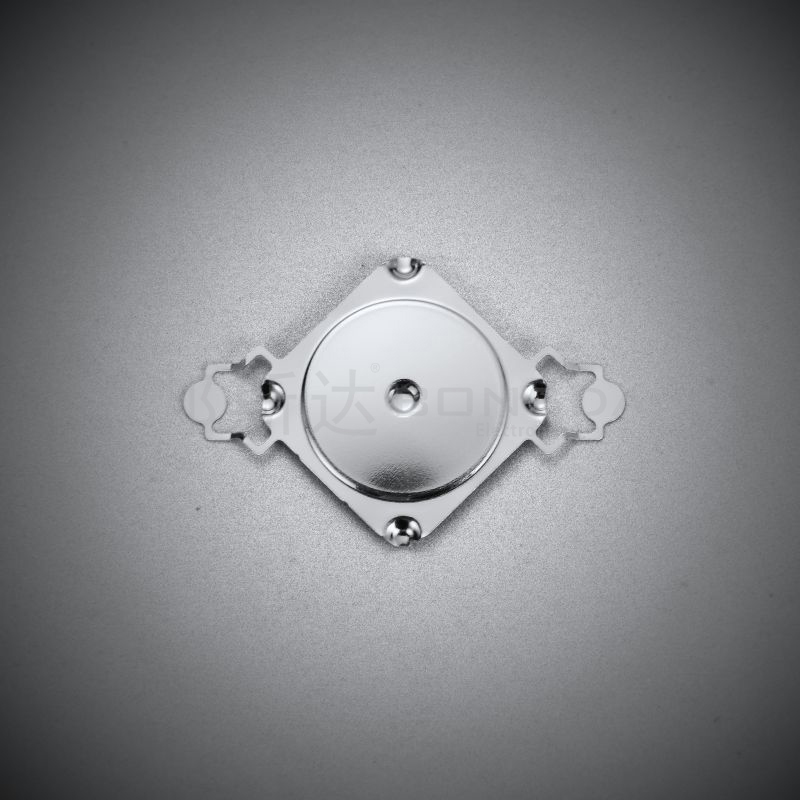

Square 15.2*8.0 metal dome switch with leads for soldering on SMD.

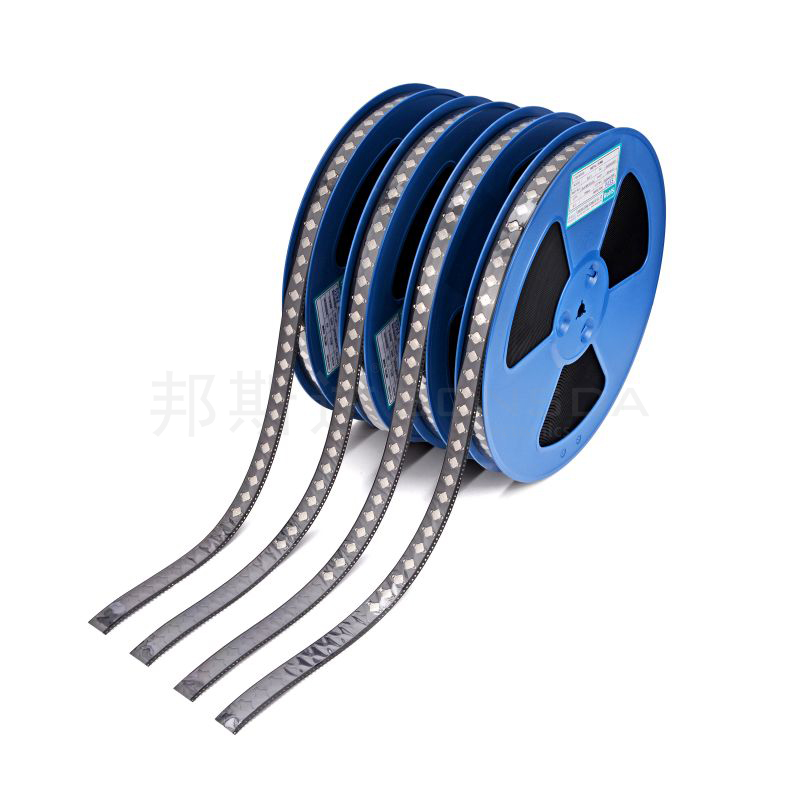

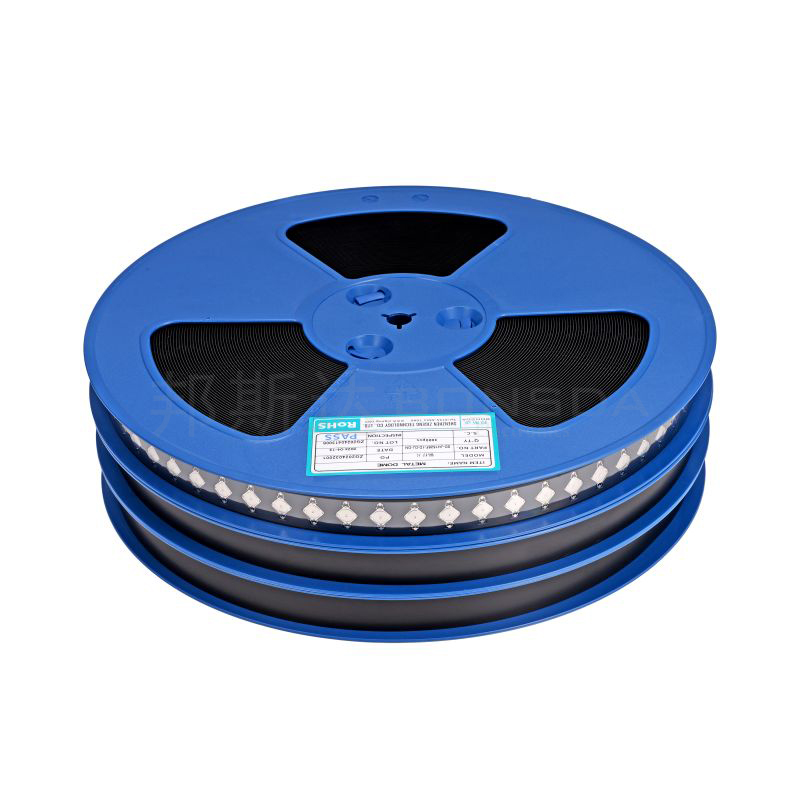

Nickel-plated reel packaging for automatic SMD dome sheet.

Product Characteristics

Online Message

After filling in your contact information, return to unlock the catalog and drawing download function.

Verification code*

Overview

Features

- Ratings (Resistive Load): 0.1A, 50V DC

- Contact Resistance: 1Ω or less

- Insulation Resistance: 10MΩ or more

- Withstanding Voltage: 100V AC for 1 minute

- Operating Force: 1.0N to 2.8N (φ15.2*8.0mm)

- Lifespan: 10,000 to 100,000 cycles

Used in input key switches for:

- Small remote controls

- Portable AV equipment

- Educational repeaters

- Quiz buzzers

- Security system intercoms

- Access control devices

- Mobile phones and smartphones

- PDAs

- Game controllers

- Medical devices

- Automotive central control systems

Parameters

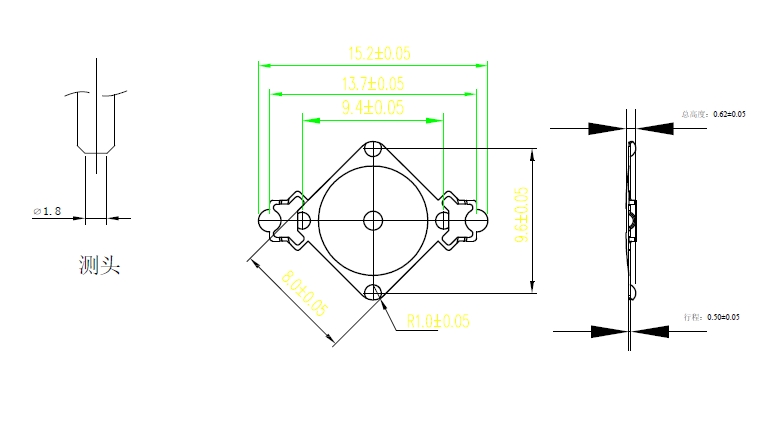

Product	Model	Diameter	Datasheet	Height	Dotted	Lifetime	Stroke	Strength	Specs
	SD-K1528F-1D-DJ-DN-HJ	15.2±0.05/8.0±0.05mm		0.62±0.05mm	1 dimple	100000(cycles)	0.5±0.05mm	280±30gf	Specs Product model : SD-K1528F-1D-DJ-DN-HJ Model :SD-K1528F-1D-DJ-DN-HJ Foot width :15.2±0.05mm Outer diameter :15.2±0.05/8.0±0.05mm Arc height :0.5±0.05mm Voltage :0.1-50V DC Current : 0.005-100mA DC Material :SUS301Materials/T(mm)0.08 Plating :Nickel Plating Work temperature :+105° -40° Storage temperature :+100° -55° apply download pdf
