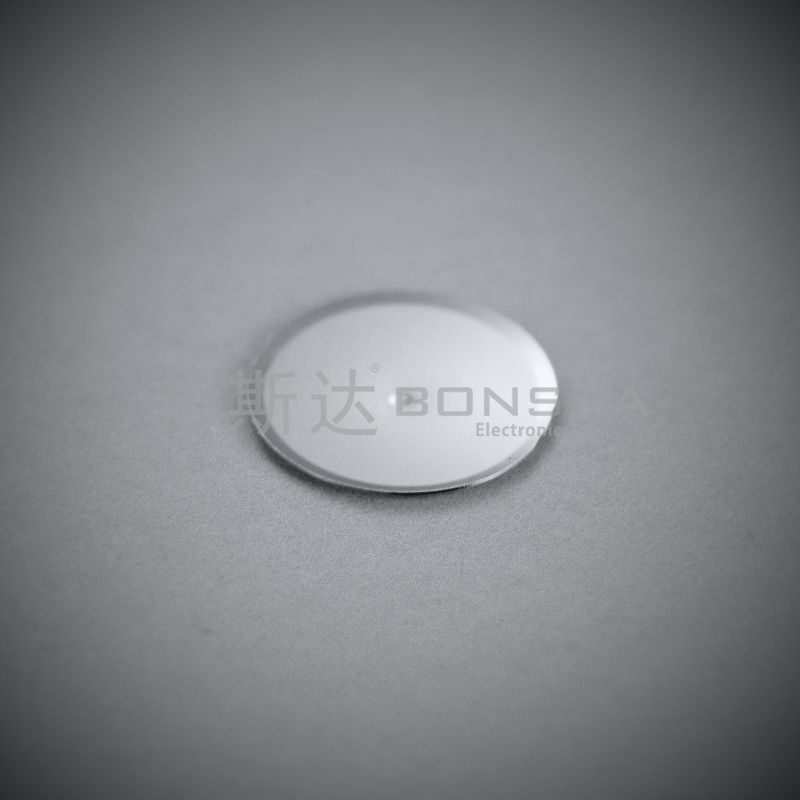

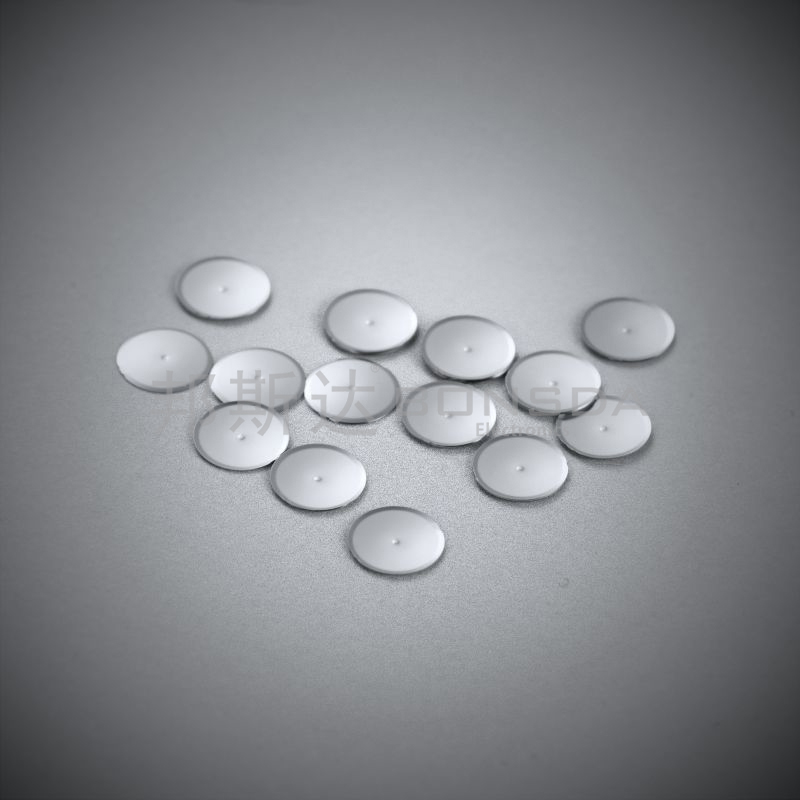

Round 5mm imported metal dome

Nickel plating strength 160GF with 1 contact dustproof metal plate pot switch

Product Characteristics

Tactile metal domes are momentary switch contacts that become normally open switches when used with a printed circuit board, flex circuit, or membrane. They are placed on printed circuit boards through pressure-sensitive adhesive tape, captured in a pocket design。

In the static state, the tactile metal spring is in contact outside the main pad. When briefly pressed, they come into contact and make contact with the secondary path, thereby closing the circuit. Many different shapes and forces can be used to suit your specific application. You can use them as mechanical switches, electrical contacts, and tactile switches.

Catalog Download

Online Message

After filling in your contact information, return to unlock the catalog and drawing download function.

Verification code*

Overview

Features

- Ratings (Resistive Load): 0.1A, 50V DC

- Contact Resistance: 1Ω or less

- Insulation Resistance: 10MΩ or more

- Withstanding Voltage: 100V AC for 1 minute

Mechanical

- Operating Force: 1.0N to 2.5N (φ4mm, φ4.5mm, φ5mm)

- Lifespan: 500,000 to 1,000,000 cycles

Applications

Used in input key switches for:

- Small remote controls

- Portable AV equipment

- Educational repeaters

- Quiz buzzers

- Security system intercoms

- Access control devices

- Mobile phones and smartphones

- PDAs

- Game controllers

- Medical devices

- Automotive central control systems

Triangle Oval Round Four-legged domes can be mounted to a wide variety of switching surfaces, including single or double-sided printed circuit boards, flex circuits, and membrane switch panels.

Parameters

Product	Model	Diameter	Datasheet	Height	Dotted	Lifetime	Stroke	Strength	Specs
	SD-S5C16-1D-DN	5.0±0.05mm		0.23±0.05mm	1 dimple	1000000(cycles)	0.18±0.05mm	160±30gf	Specs Product model : SD-S5C16-1D-DN Model :SD-S5C16-1D-DN Foot width :5.0±0.05mm Outer diameter :5.0±0.05mm Arc height :0.18±0.05mm Voltage :0.1-50V DC Current :0.005-100mA DC Material :SUS301Materials/T(mm)0.06 Plating :Nickel Plating Work temperature :+105° -40° Storage temperature :+100° -55° apply download pdf
