7.2*6.8*6 Vertical 6P-SMD, 16 Positions with Shaft Rotary Encoder Switch
- Ultra-thin size for high-density installation
- Available in 4, 10, and 16 positions
- Various pin types: THT, SMD, Angled
- IP67 (waterproof and dustproof)
- RoHS compliant
- High reliability with gold-plated contacts
1. Model: GSMR-16S
2. Package: 0-F Position Vertical SMD
3. Shaft Height: 3mm with Shaft

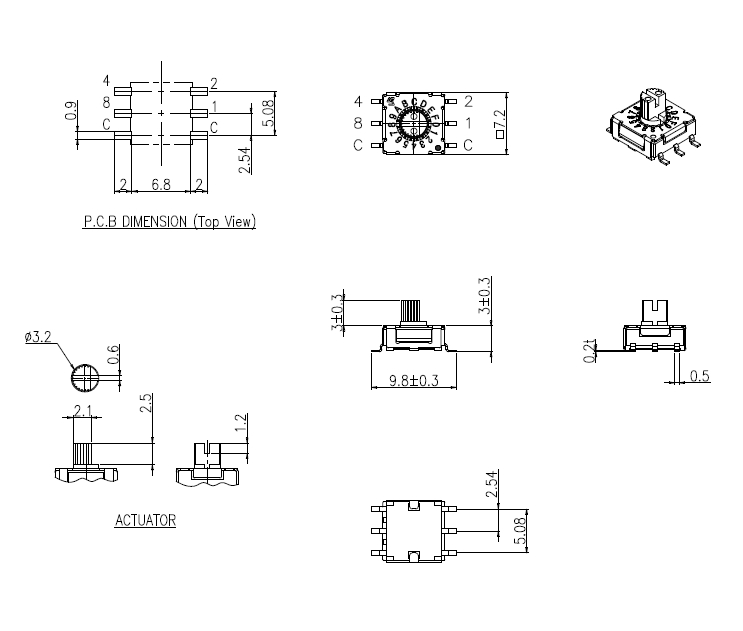

4. Specifications: 7.2mm*6.8mm*6mm, Base Height 6.8mm, Shaft 7.3mm
5. Origin: Authorized Distributor of Korean SUNGMUN Brand
6. Lifespan: 25,000 Cycles
7. Application: The GSMR-16S allows users to rotate the shaft handle to the desired position, providing BCD code output values.
8. Sealing: IP67 (Dustproof and Waterproof)
9. Main Uses: Automation Equipment, Control Devices, Home Appliances, Security Equipment, Audio Devices, etc. Customers use it in electronic cigarettes(Vaping devices & pods, disposable & Vaping components etc) products.
| Specifications | Spes | Rated current | Contact resistance | Life cycles | Travel | Trip force | Request Samples |
| 7.4mm*7.4mm*6mm |  |
100mA,DC5V-100mA,DC50V | 100mΩ，Max | 25000 Steps | 200gf Max |
Request Samples
|
Electronic switches are widely used in various fields, including home, business, automotive, electronics and industry.
