Industrial Grade Laminate Labels Durable Overlay Markers Industrial Overlay Labels
NOTES
1. Cutting line
2.Aqueous satin finish
3.Material: 60g White glassine paper
+ Synthesis paper 75um or equal
4.Adhesive: RY035 or equal
5.MEET UL-62368 & RoHS request

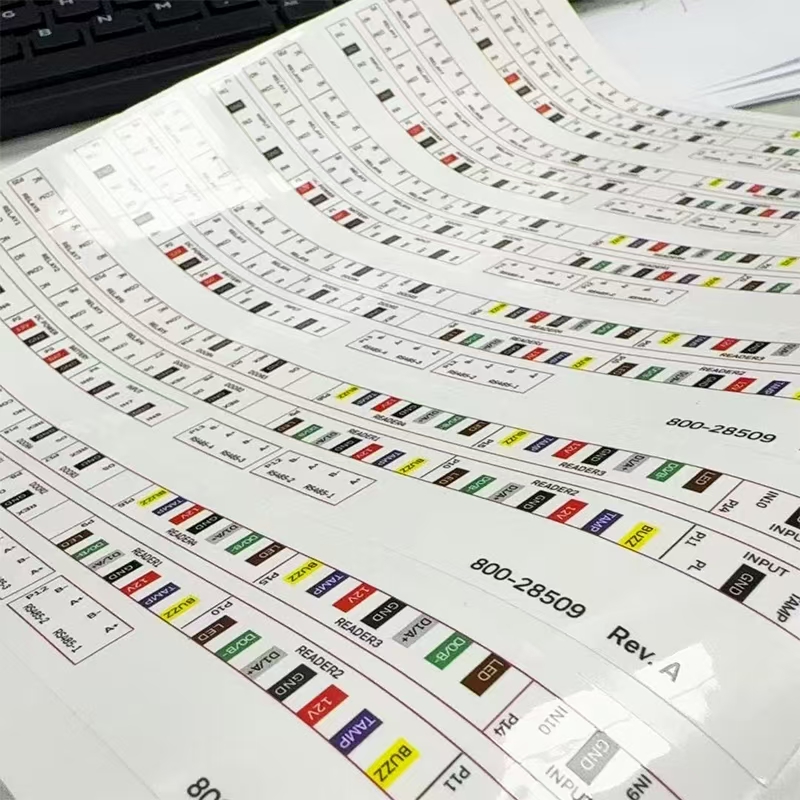

1.Material: Avery Dennison's PP synthetic paper (Fasson BW9649)
Printing process: Digital printing
2.Die-Cutting Specification

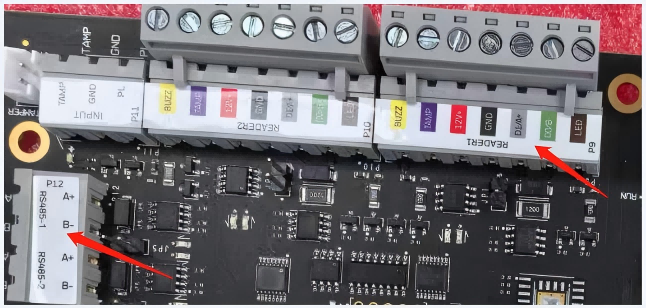

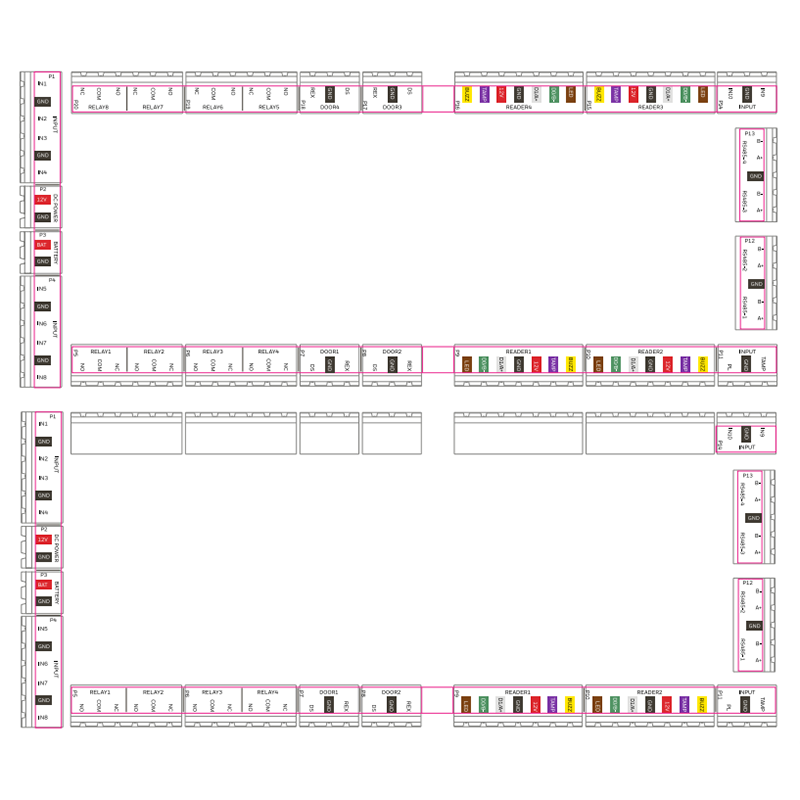

The pink lines (cutting lines) on the drawing indicate pre-cut sections for terminal mounting.

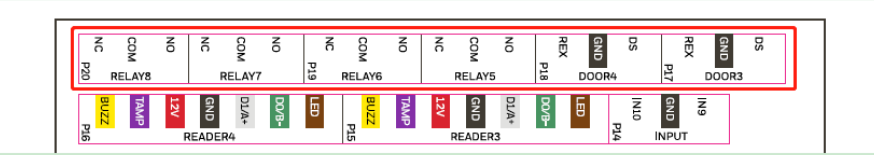

Each red-framed area constitutes one label (7 labels total).
3.Ink Adhesion Test Protocol
*"Place the sample on a balance, then use industrial alcohol-soaked nonwoven fabric to apply 30-50g force. Wipe uniformly back-and-forth 5 times. No ink transfer is permitted."*
4.Lamination Requirements
Post-test evaluation must confirm:
✓ No delamination between overlay and substrate
✓ No adhesive failure or edge lifting
5.Temperature Resilience
Condition Temperature Range
Operational -10°C to +55°C
Storage -40°C to +70°C
Material (BW9649) -50°C to +90°C
Labels must maintain adhesion without curling during thermal cycling tests.
6.Compliance
UL certification: Not required
Mandatory: RoHS compliance (EU 2015/863)
7.Overlay
Industrial Overlay Labels Industrial Laminate Labels Overlay Labels Industrial Nameplates Polycarbonate Overlays PET Overlay Polyimide Overlay Icon Overlay Graphic Overlay LabelsLabels
8. Industrial Control Panels & HMI Interfaces
Function: Labels for buttons, switches, and indicator lights
Features:
Abrasion-resistant surface for frequent touch
Chemical resistance to oils/solvents
UL/CSA compliance (for electrical equipment)
