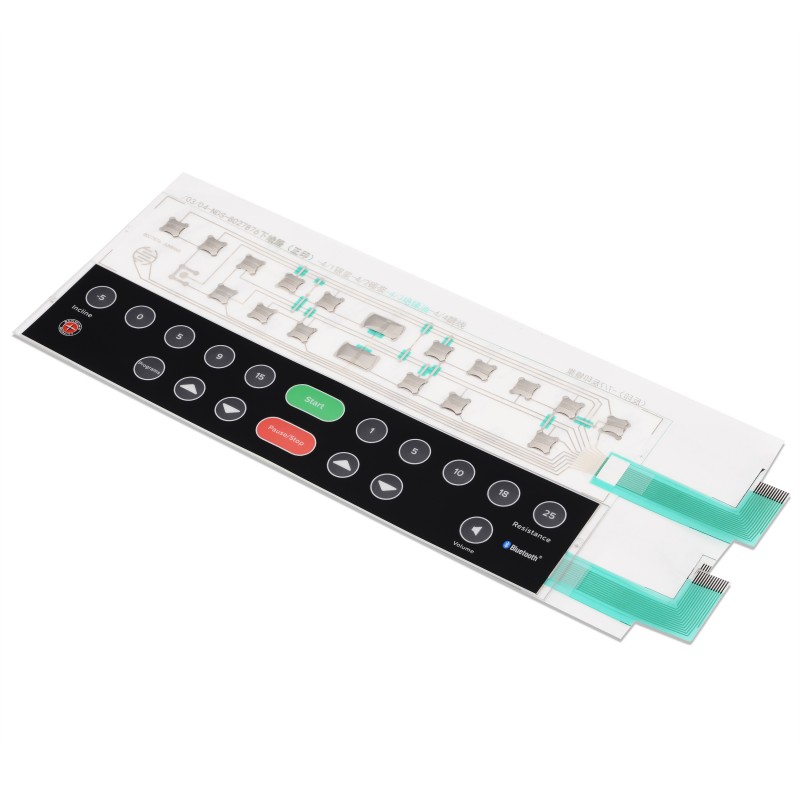

Membrane Switch Panel PET Silver Paste Membrane Switch
Property：
1.Overlay thickness 0.254mm, total thickness 0.508mmwith actuation force 1.5-2.5 0z(43-71g)
2.>1,000,000 actuations with no stress cracks in theoverlay
3. Mechanism :
a. Force applied on top of overlay is transmitted to theforce sensing resistor material.
b. This cause a drop in resistance, which is detectedby the electronics connected to the membrane circuitry.
c.The electronics then perform a switching action.
d.Switch is not affected by temperature or pressurechanges.
Property：
1.Overlay thickness 0.254mm, total thickness 0.508mmwith actuation force 1.5-2.5 0z(43-71g)
2.>1,000,000 actuations with no stress cracks in theoverlay
3. Mechanism :
a. Force applied on top of overlay is transmitted to theforce sensing resistor material.
b. This cause a drop in resistance, which is detectedby the electronics connected to the membrane circuitry.
c.The electronics then perform a switching action.
d.Switch is not affected by temperature or pressurechanges.
Membrane Switch Keypad:PET Silver Paste Membrane Switch'FPC Membrane Switch’PCB Membrane Switch‘Rubber Keypad Membrane Switch
1.Overlay materials : Autotype PET, Lexan PC, TPU,9silicone rubber or metallic plate
2.Tactile (metal dome or mylar dome) or non-tactile(flat)circuit
3.Pitch (silver circuit)0.5mm,1.0mm,1.27mm or 2.54mm,(0.5mm capable but not recommended)
4.SMT components including LED,resistors, sensors etc
5.Waterproof construction & UV protection design
6.Backlight including LGF (Light Guide Film),6)Electroluminescent(ELLamp) or Fiber Optics
7.Shielding-printed silver or carbon paste, aluminumfoil or lTo film
| Specifications | Spes | Rated current | Contact resistance | Life cycles | Travel | Trip force | Request Samples |
| -Membrane Switches-Bsd-5010-R13 |  |
35VDC，100mA，1W | 10--500Ω | Flat type Five million closures or more Tactile type one million closures or more | Flat type 0.1~0.5mm Tactile type 0.6~1.5mm | Flat type 60g~300g(2~100Z) Tactle type 150g--400g(6--140Z） |
Request Samples
|
Electronic switches are widely used in various fields, including home, business, automotive, electronics and industry.
Membrane switch panel
