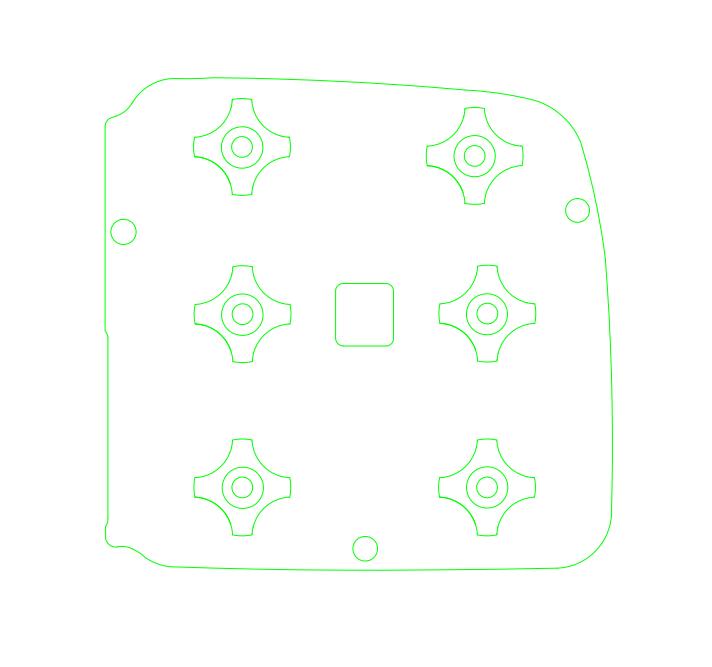

Our product is a metal dome switch array consisting of white transparent PET dome carriers backed with pressure-sensitive adhesive, enhanced with black PET domes and featuring a double-layer structure air channel venting layer.We customize dome arrays according to your preferences, including the style and quantity of domes you prefer, cut to your specific size and shape requirements. Additionally, we offer the flexibility to incorporate different sizes, shapes, and forces of metal domes within the same array.
Overall, metal dome switches with black dot PET significantly improve height, durability, sensitivity, and user experience. They are widely used in remote control buttons with printed embossed or domed designs, as well as in electronic products such as bank Ukeys and intelligent repeating devices.
1. Increased switch height: The black dot PET raises the height of the metal dome switch, improving the device's feel and comfort.
2. Precise positioning: The black dot PET is used for precise positioning of the metal dome on the overlay, ensuring stability and accuracy during button presses.
3. Enhanced sensitivity: The black dot PET increases the sensitivity and responsiveness of the button, making operation smoother and faster.
4. Increased durability: The black dot material typically has high wear resistance, extending the lifespan of the button.
5. Improved tactile feel: The use of black dot PET improves the tactile feel of the button, making it more comfortable and providing a better user experience.
6. Anti-slip design: The black dot helps prevent the button from slipping, enhancing the reliability and stability of the operation.
1. Scope:
This specification applies to metal snap dome membrane switches.
2. Appearance:
The product shall have no deformation or scratches. There shall be no foreign objects, rust, oil stains, burrs, or other defects on the snap dome.
3. Test Conditions:
This specification defines the standard temperature as 23°C ± 2°C and the standard humidity as 60% RH. Unless specified otherwise, testing shall be conducted under normal temperature and humidity conditions (temperature: 5°C to 35°C, humidity: 40% RH to 70% RH).
4. Product Parameters:
- Diameter: φ5.0*3.7mm
- Actuation Force: 160±20gf
- Travel: 0.21±0.05mm
- Rebound Rate: 50±15%
- Operating Lifespan: ≥500,000 cycles
5. Temperature Limits:
-20°C to +70°C
6. Storage Temperature and Humidity Range:
Temperature: 15°C to 35°C
Humidity: 40% RH to 70% RH
The double-layer PET dome switches are widely utilized in electronic products and mechanical devices, including but not limited to smartphones, tablets, remote controls, automotive keypads, medical equipment, smart home devices, digital cameras, gaming controllers, appliance control panels, industrial control panels, and consumer electronics.

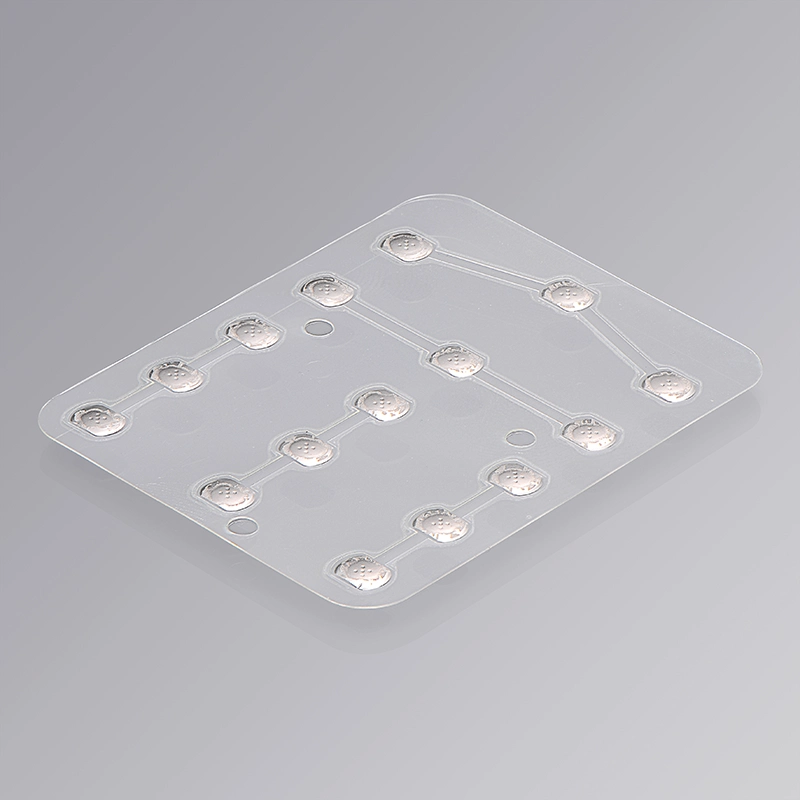

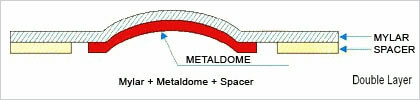

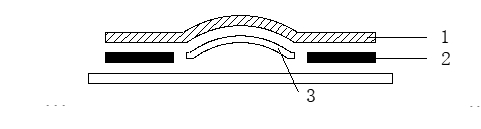

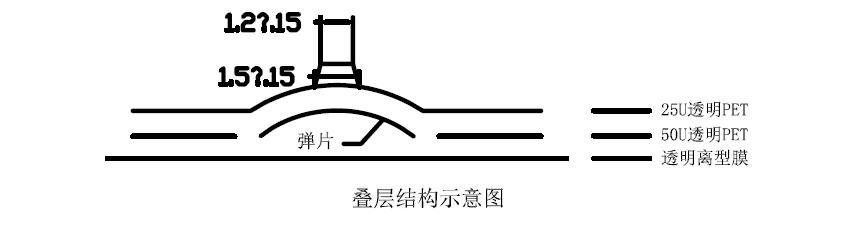

The double-layer PETMetal Dome Array differs from single-layer conductive film in that it includes an additional Spacer layer, allowing the dome to adhere better to the Mylar and maintain good contact with the circuit board, resulting in improved tactile feedback (similar to the "dome" effect in membrane switches). Additionally, the ventilation holes on the double-layer conductive film more effectively prevent the PET layer from being scratched by the sharp edges of the dome and prevent dust from entering the PET layer.

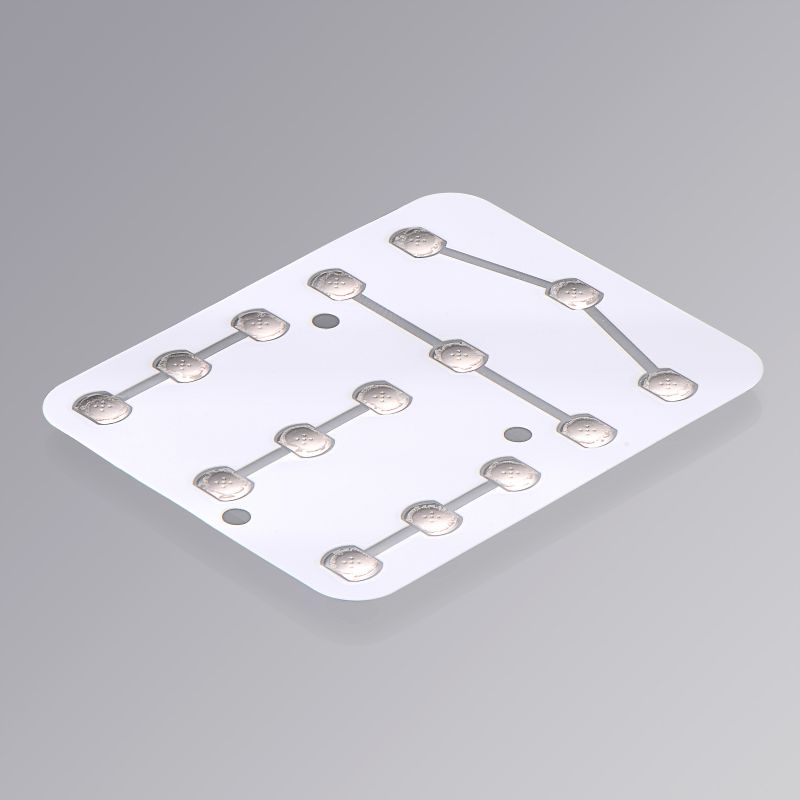

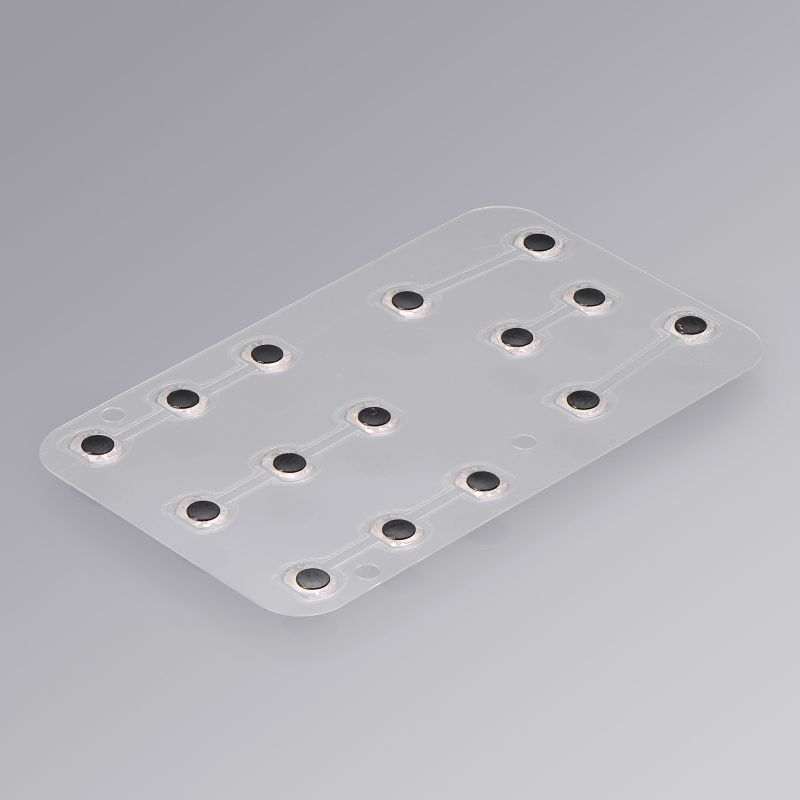

15-key, nickel-plated dome switches, waist-shaped 5mm Metal Dome Array with white PET spacer.
The double-layer structured 15-key Metal Dome Array with a white PET adhesive spacer differs from a single-layer conductive film by incorporating an additional Spacer layer. This allows the domes to adhere better to the Mylar and maintain optimal contact with the circuit board, resulting in enhanced tactile feedback (reminiscent of the "dome" effect in membrane switches). Furthermore, the ventilation holes on the double-layer conductive film more effectively prevent the PET layer from being scratched by the sharp edges of the domes and deter dust from entering the PET layer. The PET spacer primarily serves to improve the structural conductivity height, thereby enhancing the tactile performance of the keys and providing a comfortable pressing experience during key actuation.
15-key, nickel-plated dome switches, waist-shaped 5mm Metal Dome Array with white PET spacer.
The double-layer structured 15-key Metal Dome Array with a white PET adhesive spacer differs from a single-layer conductive film by incorporating an additional Spacer layer. This allows the domes to adhere better to the Mylar and maintain optimal contact with the circuit board, resulting in enhanced tactile feedback (reminiscent of the "dome" effect in membrane switches). Furthermore, the ventilation holes on the double-layer conductive film more effectively prevent the PET layer from being scratched by the sharp edges of the domes and deter dust from entering the PET layer. The PET spacer primarily serves to improve the structural conductivity height, thereby enhancing the tactile performance of the keys and providing a comfortable pressing experience during key actuation.

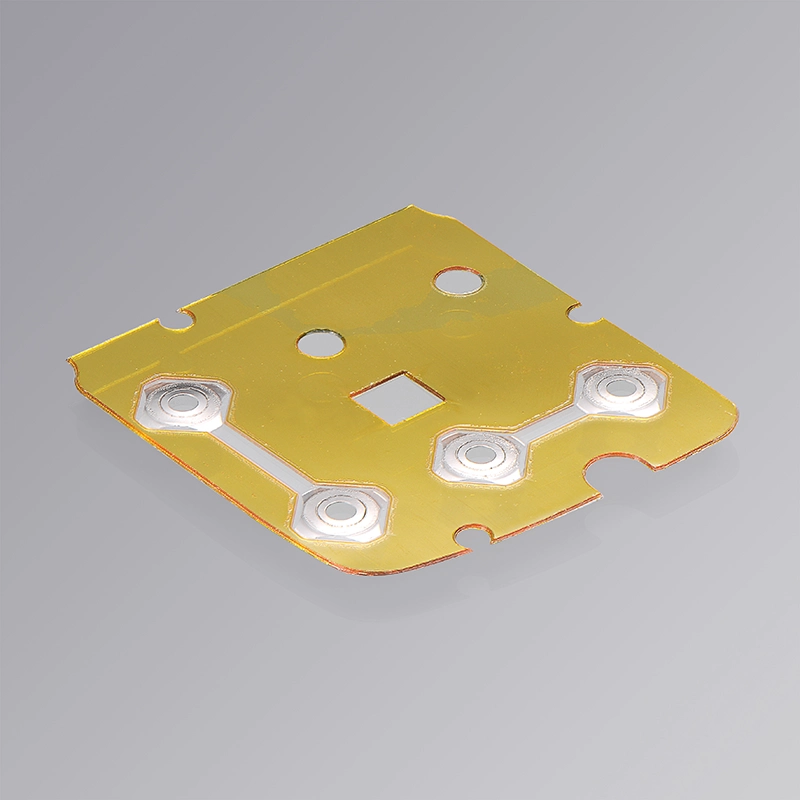

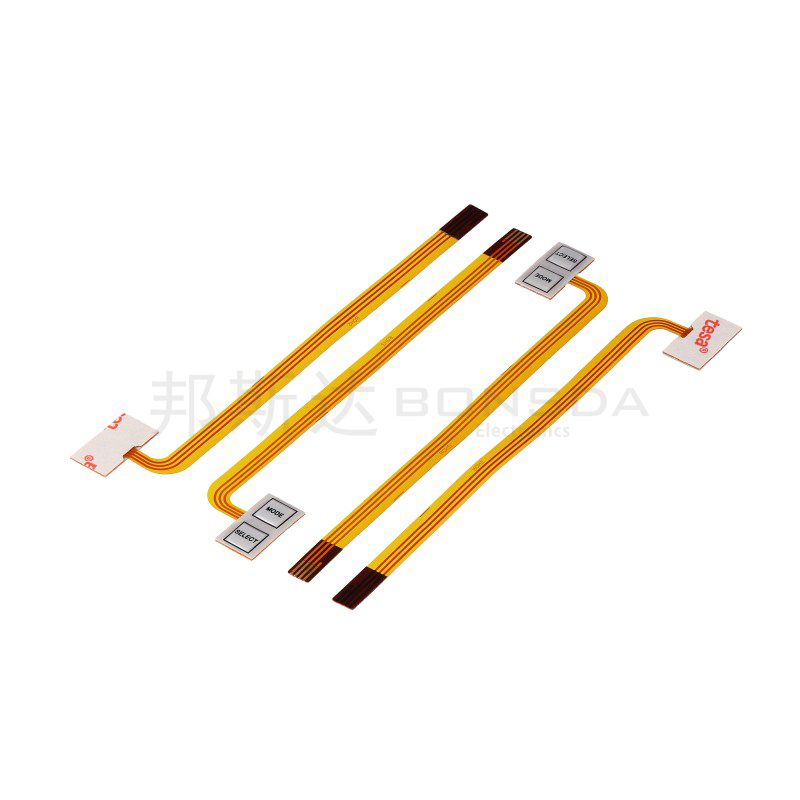

1. The high-temperature resistant yellow PI adhesive material is an excellent material for applications requiring high-temperature environments. Its exceptional heat resistance allows it to maintain stable physical and chemical properties even under high-temperature conditions, ensuring effectiveness and reliability in various high-temperature processes.
2. The primary component of yellow PI adhesive material is polyimide (PI), which possesses outstanding insulation, wear resistance, and acid and alkali resistance. Through special processing, the PI adhesive material can withstand temperatures up to 300 degrees Celsius and can be used for extended periods at 180 degrees Celsius. Additionally, this material exhibits excellent electrical properties, abrasion resistance, tear resistance, and other characteristics.
3. In applications, the high-temperature resistant yellow PI adhesive material is extensively used for solder masking, high-temperature insulation bundling of transformer coils, insulation materials for capacitors, and other purposes. Particularly in the field of electronics and electrical engineering, it can be applied for high-temperature spray shielding protection of PCB gold fingers, as well as processes such as wave soldering and reflow soldering, to protect electronic components from high-temperature damage.
4. The Metal Dome Array, employing this high-temperature resistant PI adhesive, is primarily used for customer convenience. It allows the Metal Dome Array buttons to be conveniently applied to the PCB during secondary reflow soldering processes. The high-temperature resistance of the PI adhesive ensures that it remains intact without peeling or wrinkling during the process.
Excellent high-temperature resistance: Able to maintain stability in high-temperature environments, particularly suitable for applications requiring prolonged exposure to high temperatures.
Good electrical performance: High insulation ensures electrical safety, especially suitable for the electronics and electrical engineering fields.
Outstanding abrasion resistance and tear resistance: Maintains durability even in complex environments.
Strong adhesion without leaving residue: Effectively secures and shields, easy to clean after use without leaving traces.
Wide range of applications: Can be used for solder masking, insulation bundling, and various other purposes, meeting diverse needs.
Metal Dome Arrays employing this high-temperature resistant PI adhesive are widely used in various products, including:
